Custom Made Filter Bags

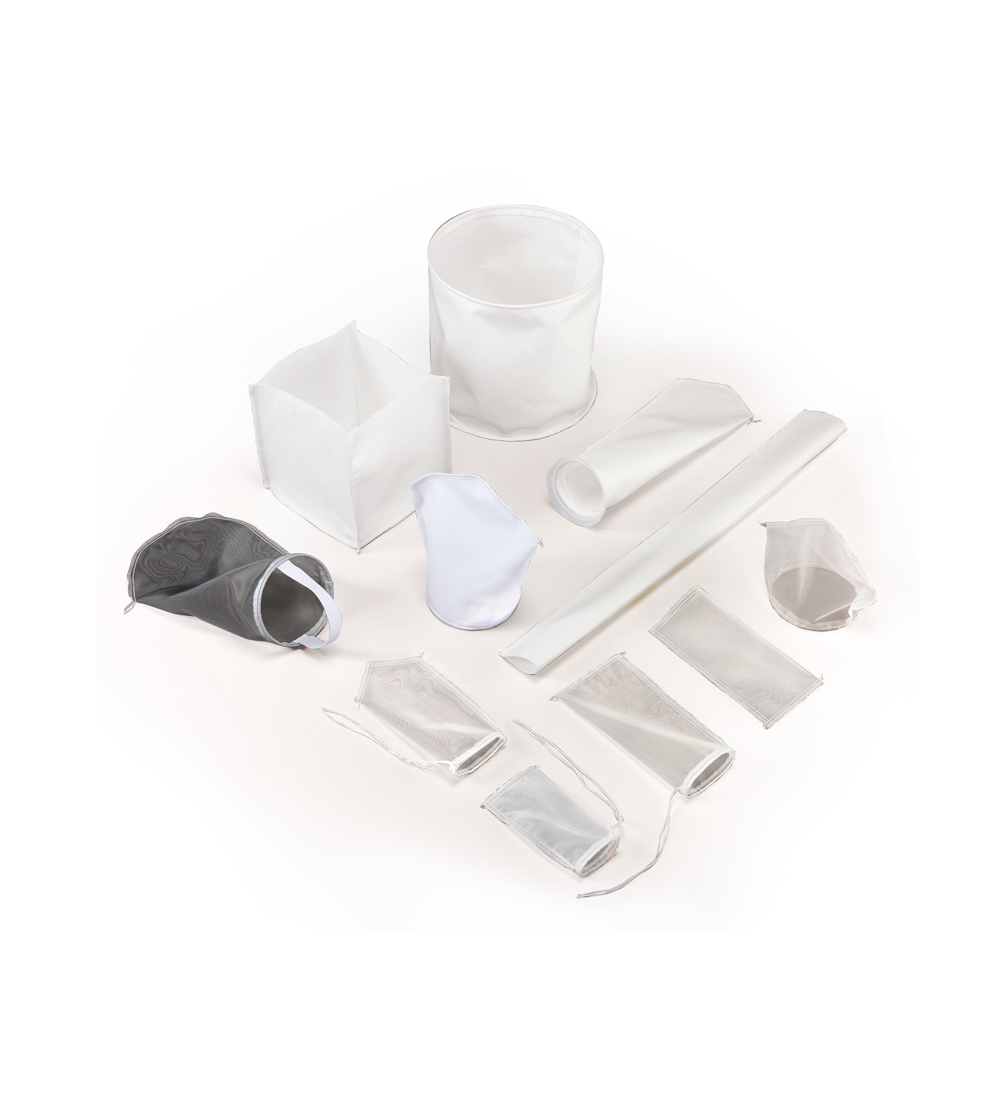

For unique applications requiring liquid filter bags which fall outside of the scope of our standard range, our manufacturing flexibility and expertise enables us to design and produce custom made products which perfectly meet your needs. Such bespoke products include, but are not limited to :
- Filter bags with non-standard dimensions
- Filter bags with Tie cord
- Special ring types and sizes e.g. “X100” 5.5” polypropylene moulded collar
- ‘Bucket’ style bags with circular base
- Square/ rectangular bags
- ‘Box-type’ bags
- Cylindrical filter sleeves
- Filter bags made from speciality fabrics, such as our PVC ‘carbon’ filter bag, antistatic felt or mesh
For demanding applications which require modifications to a standard filter bag product, customisation options include :
- Reinforced seams
- Special lifting handles
- Reverse collar construction
- Filter media with micron ratings other than standard.

Chemical Compatability Guide
Media / Collar Type | Acids | Alkali | Solvents | Oxidants | Recommend Maximum Operating Temperature (*C) |
Polyester | Good | Good | Excellent | Poor | 140*C |
Polypropylene | Excellent | Excellent | Good | Excellent | 93*C |
Nylon | Fair | Good | Excellent | Fair | 110*C |
Nomex* | Good | Good | Excellent | Excellent | 200*C |
PTFE | Excellent | Excellent | Excellent | Excellent | 260*C |
Santoprene* | Excellent | Excellent | Excellent | Excellent | 200*C |
Bag Size | Diameter (inches/mm) | Length (inches/mm) | Surface Area (m2) | Volume (l) | Maximum Flow Rate (m3/hr)* |
1 | 7″/180mm | 17″/430mm | 0.25 | 11.0 | 20 |
2 | 7″/180mm | 32″/810mm | 0.50 | 20.0 | 40 |
3 (1M) | 4″/104mm | 9″/230mm | 0.07 | 1.9 | 6 |
4 (2M) | 4″/104mm | 14″/360mm | 0.12 | 3.2 | 10 |
*Flow rate depends on factors such as filter media type, micron rating, and fluid being filtered. All dimensions are nominal.
Related Products
-

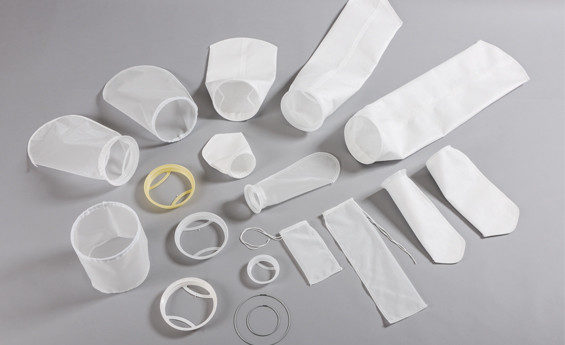

Standard Filter Bags
Allied Filter Systems Ltd manufactures high quality liquid filter bags to fit standard size filter vessels, as well as custom designed products where requested. The constituent materials have been chosen for their purity, consistent high quality and repeatable performance. Filter bags are available in traditional stitched form or with a fully welded construction, and are fitted with a comprehensive choice of rings.
-

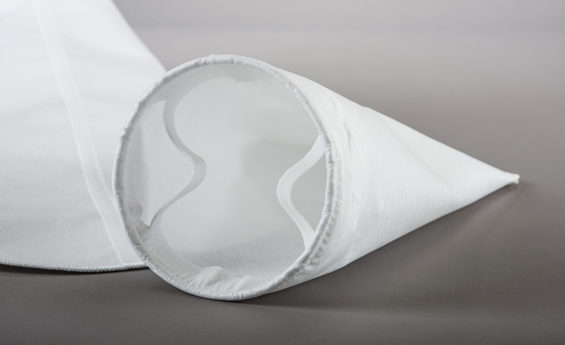

Sewn Needlefelt Filter Bags
