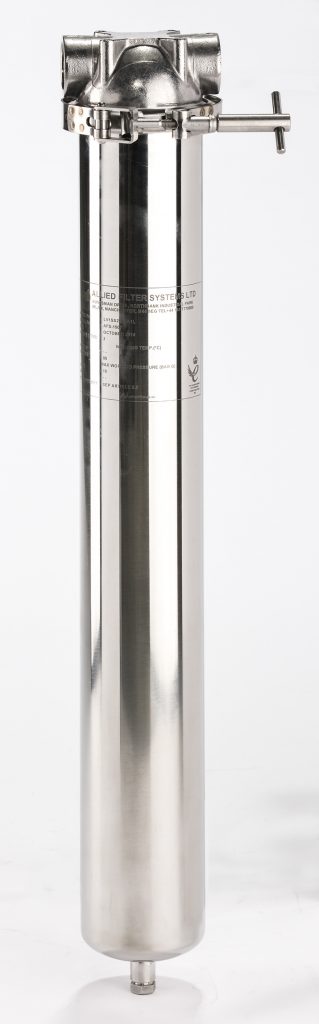

LV1 Stainless Steel Single Cartridge Housings
The LV1 series, stainless steel cartridge housing consists of an investment cast head with 1” BSP (F) inline connections and 1/8” BSP (F) vent, a quick release clamp, and a bowl with ¼” BSP (F) bottom drain.
LV1 cartridge vessels are produced in four sizes to suit industry standard 10”, 20”, 30” and 40” nominal length filter cartridges. The universal head can be configured to suit double open ended, code 8 (222 o rings/fin) or code 3 (222 o rings / flat) cartridges. The LV1 can also accept code 7 (226 o rings / fin) cartridges when supplied with an adaptor. The head is provided with locating sockets for an optional wall mounting bracket.
As standard, the LV1 series cartridge vessel has a mechanically polished exterior finish.
The material of construction is stainless steel 316L, and the housing has a pressure rating of 10 Bar and temperature rating of 80oc (higher ratings are available on request). The LV1 is suitable for filtration of liquids, alternative designs are available for gas applications.
Please contact us for further information or view our range of Filter Cartridges.
