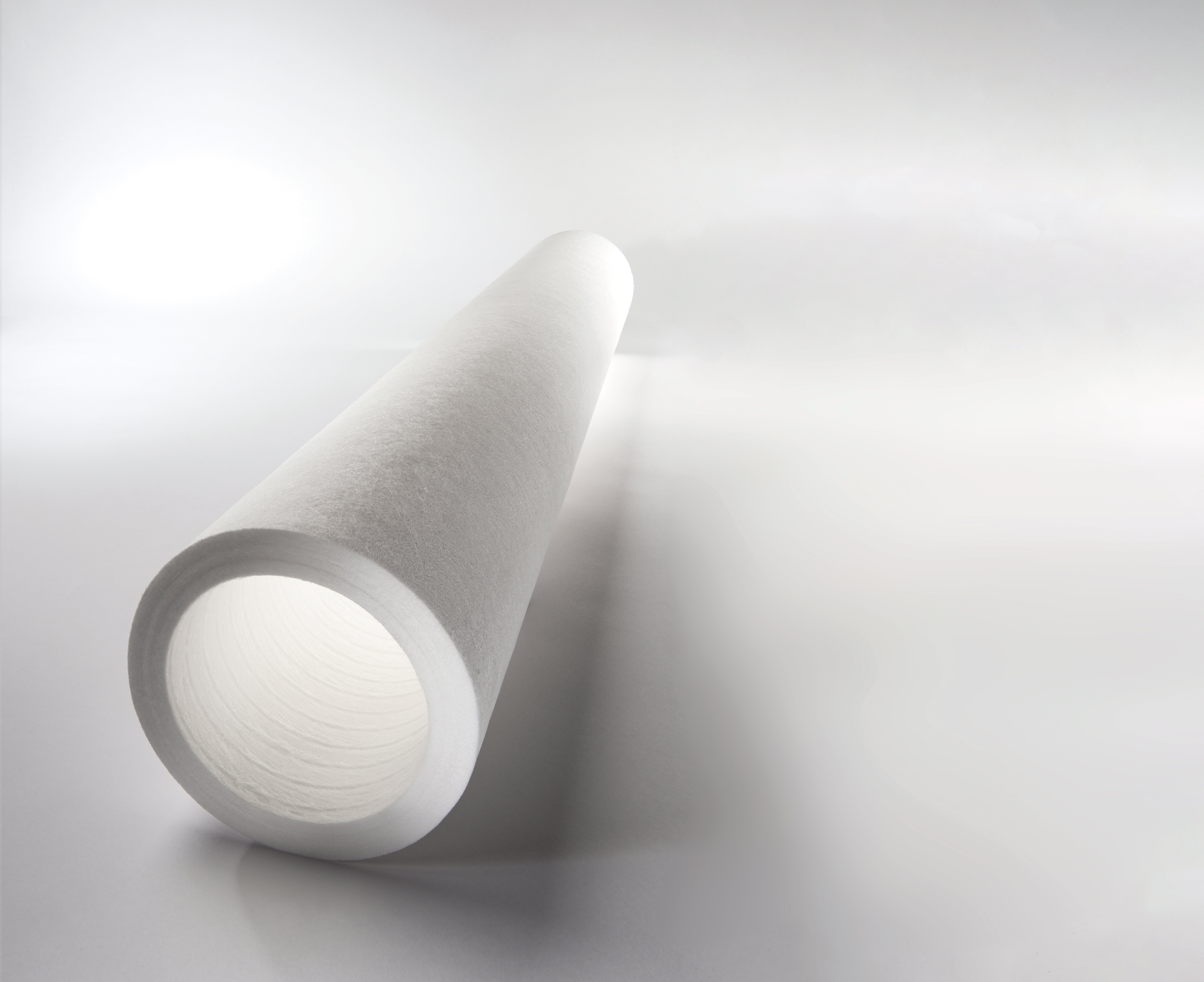

Proxis HF Melt Blown Cartridges
Proxis HF melt blown cartridges are designed to perform depth filtration whilst handling a high flow-rate.
They feature a two zone filtration structure where a pre-filter and final filter are combined in a single element.
The large internal diameter minimizes differential pressure and consequentially a reduced number of elements compared to using conventionally sized cartridges is required for large flow rate applications. Therefore the required filter housing will be smaller, reducing capital investment. For example, 40” Proxis HF cartridges can handle flow rates of 300 – 800 L/min depending on micron rating and permitted pressure drop.
Proxis HF melt blown cartridges are “coreless” filter elements, and mechanical strength is provided by an internal perforated tube located within the filter housing
- 100% polypropylene construction.
- Available micron ratings 1,5,10,20,40 micron.
- Dimensions : 114.3mm I.D. x 152.4mm O.D.
- Length : 20” or 40”.
- Max differential pressure: 4.2 Bar at 20o
- Max temperature: 60oC.
Please contact us for further information or view our range of Filter Cartridges.
